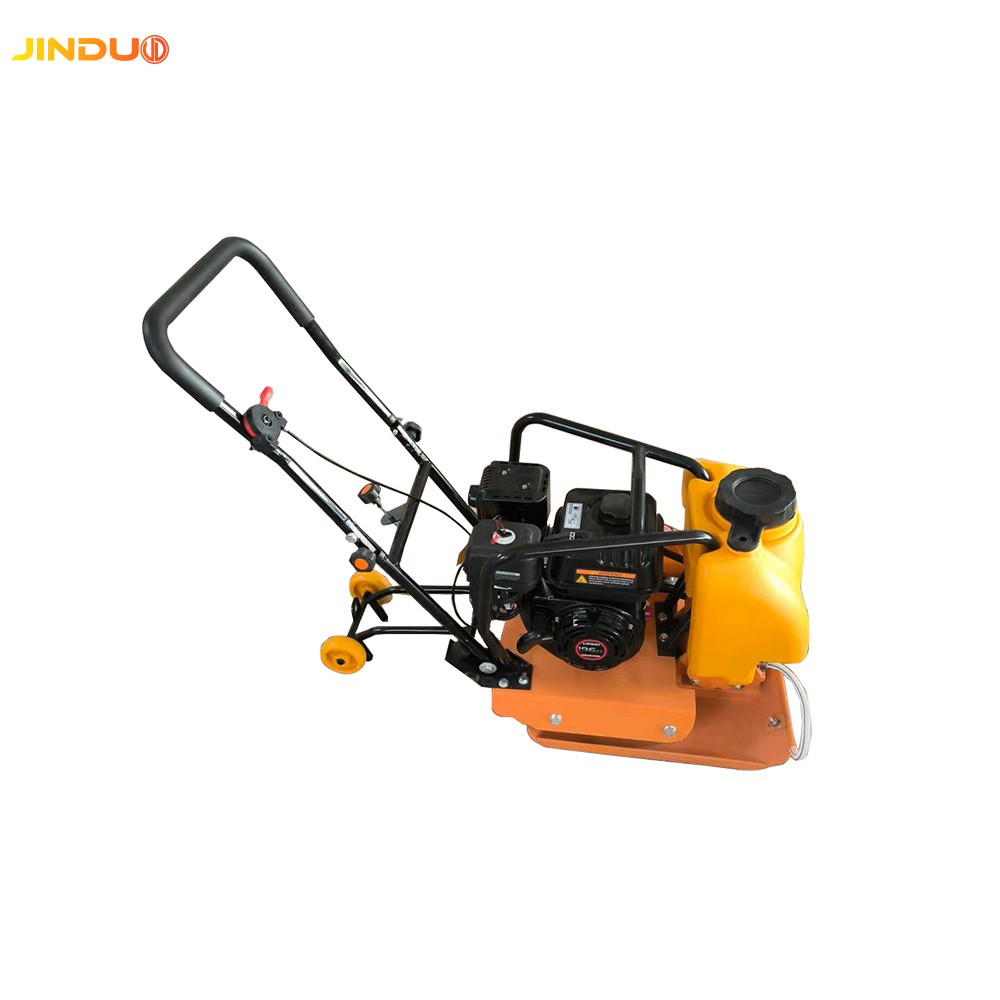

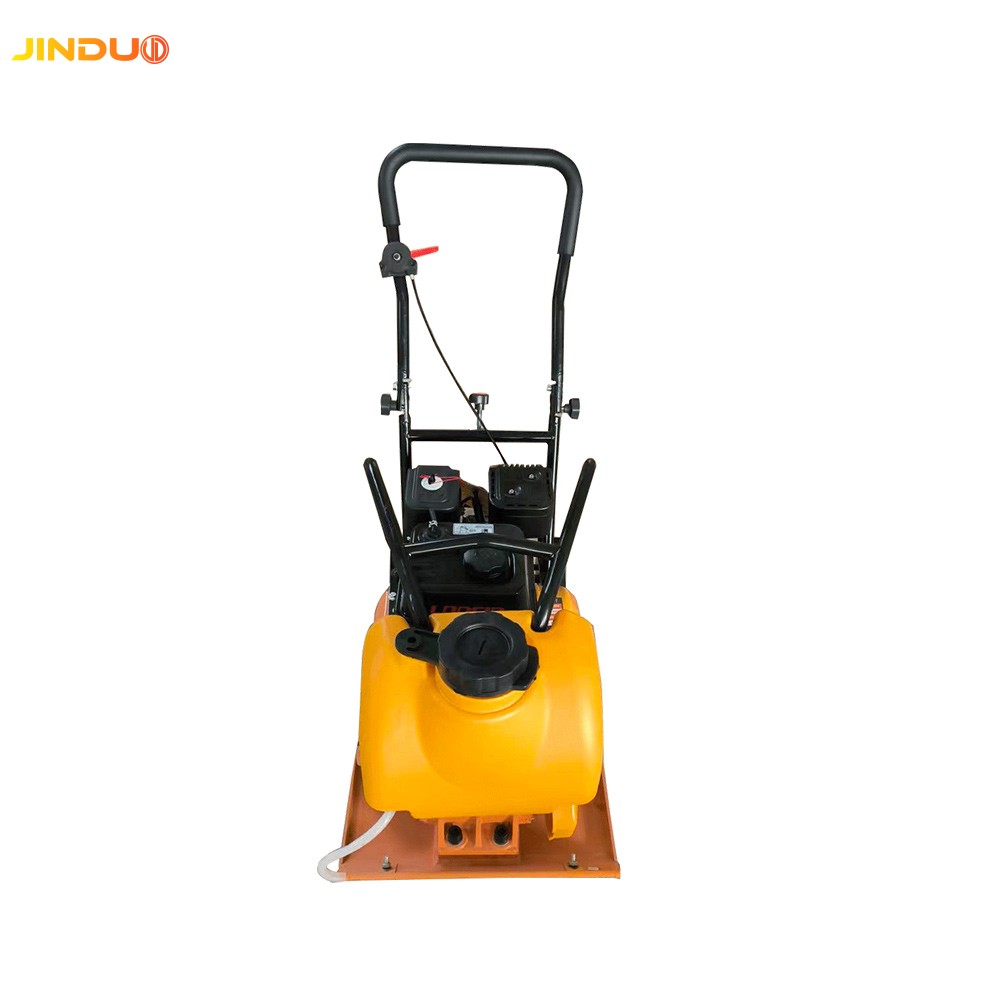

Plate Compactor
Ideal for compacting clay,sand and asphalt in sidewalk repairs, patio installations, driveway construction, and landscaping projects. Delivers uniform surface compression with its flat, heavy-duty base plate, eliminates unevenness, and enhances the load-bearing capacity of the ground to ensure long-term structural stability.
Below are its detailed specifications.
Parameter |
Plate Compactor |
Gross Weight(kg) |
75 |
Overall Dimension（L*W*H） |
80cm*54cm*65cm |
Vibratory Force(KN) |
15 |
Vibratory Frequency(HZ) |
48 |
Engine Power(HP) |
6.5 |
Fuel Type |
4-stroke Gasoline |
Fuel Tank Capacity(L) |
3.6 |
Fuel Consumption(g/kw/h) |
Approx. 340 |
Compaction Depth (cm) |
≤25 |
Working Efficiency（㎡/h) |
85 |
Applicable Surfaces |
Clay/Sand/Asphalt |
Machine Body Material |
Steel Plate |
Vibration Damping System |
Damping Block |
Travel Mode (Hand-held/Auto) |
Hand-held |
